Login components - iOS

Overview

The Weavr SDK provides a set of components for secure-input of authentication credentials for various scenarios. This section covers:

• Password-based authentication
• Passcode-based authentication
• OTP (One-Time Password) verification

Each component is designed with security features, including built-in text masking, secure handling, and proper validation.

The components allow a user to input their credentials in a secure fashion, which is converted into a user session token. This can then be used to execute requests with Weavr's API, allowing the user to interact with their financial instruments and Weavr's services.

Component types

1. Password Component (SecurePasswordField)

Use this component for password-based authentication (something you know). It ensures secure text input with masking and validation.

Integration

Programmatically

lazy var securePasswordField: SecurePasswordField = {
    let textField = SecurePasswordField()
    textField.placeholder = "Passcode"
    textField.frame = CGRect(x: 10, y: 100, width: 300, height: 30)
    return textField
}()

Storyboard

This can be achieved by dragging and dropping the UITextField component to your storyboard. After that, go to the component's Identity inspector and type SecurePasswordField in the Class block, and WeavrComponents in the Module block.

At this point, If you hit ctrl + R or click run at Xcode, you can see the password mobile component in your device/Simulator.

Security features

• Secure text masking
• Input type enforcement
• Maximum length validation (100 characters)
• Secure text handling

2. Passcode Component (SecurePasscodeField and SecurePasscodeFieldStack)

We offer two components to let your users enter a passcode (e.g. 4-8 digit PIN).

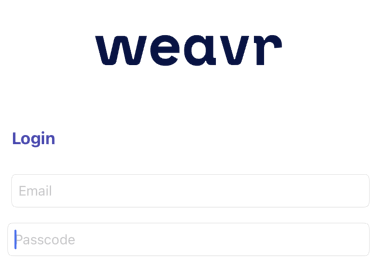

The first component, SecurePasscodeField presents the passcode input as a single field:

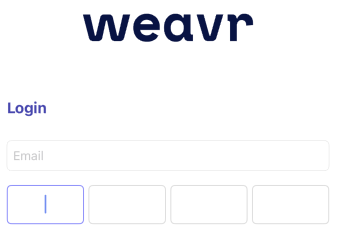

The second component, SecurePasscodeFieldStack presents the passcode as one input per digit to enter:

You can chose a component based on whatever best fits your user interface.

Using the SecurePasscodeField

Programmatically

lazy var securePasscodeField: SecurePasscodeField = {
    let textField = SecurePasscodeField()
    textField.placeholder = "Passcode"
    textField.frame = CGRect(x: 10, y: 100, width: 300, height: 30)
    return textField
}()

Storyboard

This can be achieved by dragging and dropping the UITextField component to your storyboard. After that, go to the component's Identity inspector and type SecurePasscodeField in the Class block, and WeavrComponents in the Module block.

At this point, If you hit ctrl + R or click run at Xcode, you can see the passcode mobile component in your device/Simulator.

Using the SecurePasscodeFieldStack

Programmatically

lazy var securePasscodeFieldStack: SecurePasscodeFieldStack = {
    let textField = SecurePasscodeFieldStack()
    textField.frame = CGRect(x: 10, y: 100, width: 300, height: 30)
    textField.show()
    return textField
}()

Storyboard

This can be achieved by drag and dropping the UIStackView component to your storyboard. After that go to the component's Identity inspector and type SecurePasscodeFieldStack in the Class block, and WeavrComponents in the Module block.

At this point, If you hit ctrl + R or click run at Xcode, you can see the passcode stack mobile component in your device/Simulator.

3. OTP Component (SecureSmsOtpFields)

For One-Time Passwords (6 digits, segmented).

Programmatically

lazy var SecureSmsOtpFields: SecureSmsOtpFields = {
    let textField = SecureSmsOtpFields()
    textField.placeholder = "One-Time Password"
    textField.frame = CGRect(x: 10, y: 100, width: 300, height: 30)
    return textField
}()

Storyboard

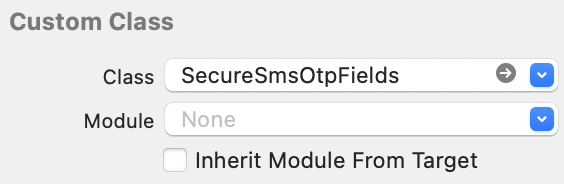

This can be achieved by drag and dropping the UITextField component to your storyboard. After that go to the component's Identity inspector and type SecureSmsOtpFields in the Class block, and WeavrComponents in the Module block.

At this point, If you hit ctrl + R or click run at Xcode, you can see the passcode mobile component in your device/Simulator.

Listeners

Both SecurePasswordField, SecurePasscodeField, and SecureSmsOtpFields support setting a TextEntryCompleteDelegate that notifies you if the user enters an input matching the maximum length of the password.

If you are logging in the user via a passcode, this usually will be the trigger for the login process.

On the other hand, when the user enters a password, you'll likely want to let the user tap on the login button before logging them in.

The next snippet showcases how to use TextEntryCompleteDelegate.

class MyViewController: UIViewController {
    @IBOutlet weak var mySecurePasscode: SecurePasscodeField!

    override func viewDidLoad() {
        super.viewDidLoad()
        mySecurePasscode.textEntryCompleteDelegate = self
    }
}

extension MyViewController: TextEntryCompleteDelegate {
    func onTextEntryComplete(_ textField: SecureTextField) {
        print("Passcode completed!")
    }
}

Meanwhile, SecurePasscodeFieldStack supports SecurePasscodeFieldStackDelegate, which informs you of:

1. Focus change
2. Text entry completed

The following snippet demonstrates how to use it:

class MyViewController: UIViewController {
    @IBOutlet weak var mySecurePasscode: SecurePasscodeFieldStack!

    override func viewDidLoad() {
        super.viewDidLoad()
        mySecurePasscode.delegate = self
    }
}

extension MyViewController: SecurePasscodeFieldStackDelegate {
    func onFocusChange(index: Int, focused: Bool) {
        print("Input at index \(index) is \(focused ? "focused" : "not focused")")
    }

    func onTextEntryComplete() {
        print("Passcode completed!")
    }
}

This is useful for:

• Tracking user input progress
• Implementing custom focus-based animations
• Adding visual feedback when segments gain/lose focus
• Handling focus-based validation

3. OTP Component (SecureSmsOtpFields)

For One-Time Passwords (6 digits, segmented).

Programmatically

lazy var SecureSmsOtpFields: SecureSmsOtpFields = {
    let textField = SecureSmsOtpFields()
    textField.placeholder = "One-Time Password"
    textField.frame = CGRect(x: 10, y: 100, width: 300, height: 30)
    return textField
}()

Storyboard

This can be achieved by dragging and dropping the UITextField component to your storyboard. After that, go to the component's Identity inspector and type SecureSmsOtpFields in the Class block, and WeavrComponents in the Module block.

At this point, If you hit ctrl + R or click run at Xcode, you can see the passcode mobile component in your device/Simulator.

Common features

All components share these security features:

• Secure text masking
• Input type enforcement
• Length validation
• Secure text handling
• Tokenisation support
• Error handling
• UI customisation options

Token management

The login components are used to create a tokenized representations of the user input; allowing you to send sensitive information to our servers without interacting directly with it.

tip

By transmitting and receiving PCI-sensitive data in tokenised form, you qualify for the lowest level of PCI compliance.

Creating tokens

LoginComponents allow to create a token via the createToken function. The following snippet showcases how to use it:

class MyViewController: UIViewController {
    @IBOutlet weak var mySecurePasscode: SecurePasscodeField!

    func tokenizePassword() {
        mySecurePasscode.createToken { result in
            switch result {
            case .failure(let error):
                print("Something went wrong \(error)")
            case .success(let tokens):
                print("Token: \(tokens.first?.value ?? "No token")")
            }
        }
    }
}

Additionally, you can avoid multiple round-trips to our servers by grouping multiple tokenisation requests into one.

You can read more on group tokenization here.

Setting user token

After a successful login, you should set the user access token within the SDK via:

UXComponents.setUserToken(token: token) { result in
    switch result {
    case .failure(let e):
        print("Something went wrong: \(e)")
    case .success(let result):
        print("User token associated: \(result)")
    }
}

Verifying token association

At any point in time, you can validate if a token is available by checking if there's an associated user:

let isAssociated = UXComponents.isAssociated()

Resetting user association

When the user logs out of your application, you can reset the association with:

UXComponents.resetAssociation()

Security considerations

1. Always use secure input types (isSecureTextEntry = true)
2. Implement proper error handling
3. Use appropriate token management
4. Follow biometric authentication guidelines when using passcodes
5. Validate input length and format
